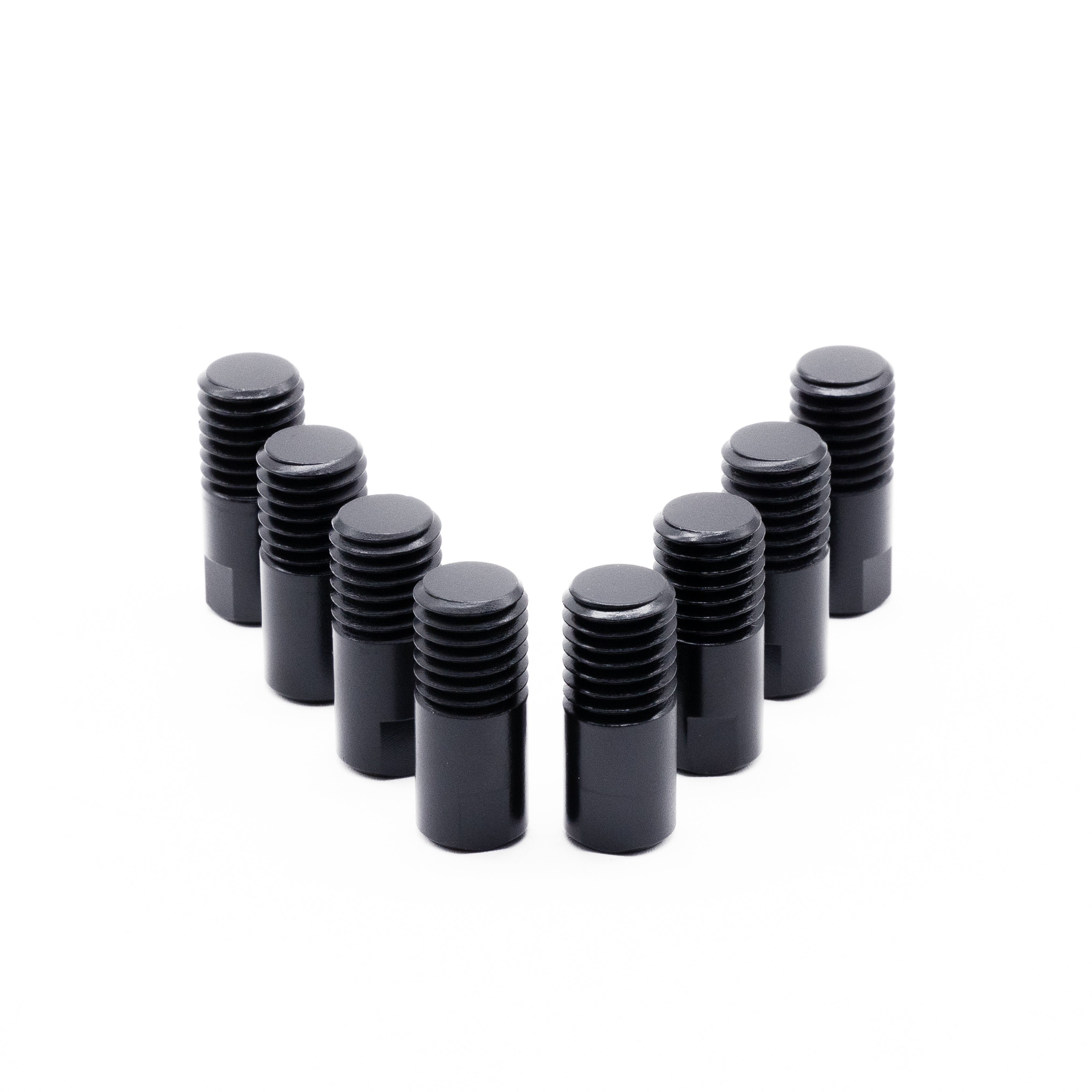

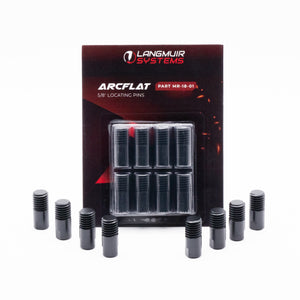

5/8" Layout Pin

This 5/8" layout pin is precision-machined for use with layout blocks and standard 5/8" fixture tables. Threaded for secure connection to layout blocks, it creates rigid, repeatable setups for welding, fabrication, and inspection tasks.

Two machined flats allow easy installation or removal using a wrench—ideal for tight setups or when hand-tightening isn't enough.

Highlights:

• Threaded to work directly with layout blocks
• 5/8" diameter fits standard fixture tables (2" or 2.8" spacing)
• Wrench flats for secure tightening and removal
• Precision-machined for accurate, repeatable setups
• Built to hold up in daily shop use

Explore More: For compatible blocks and full fixturing systems, visit the ArcFlat product page. Design better setups with tools that work the way you do.
